Ball Valves
Product Description

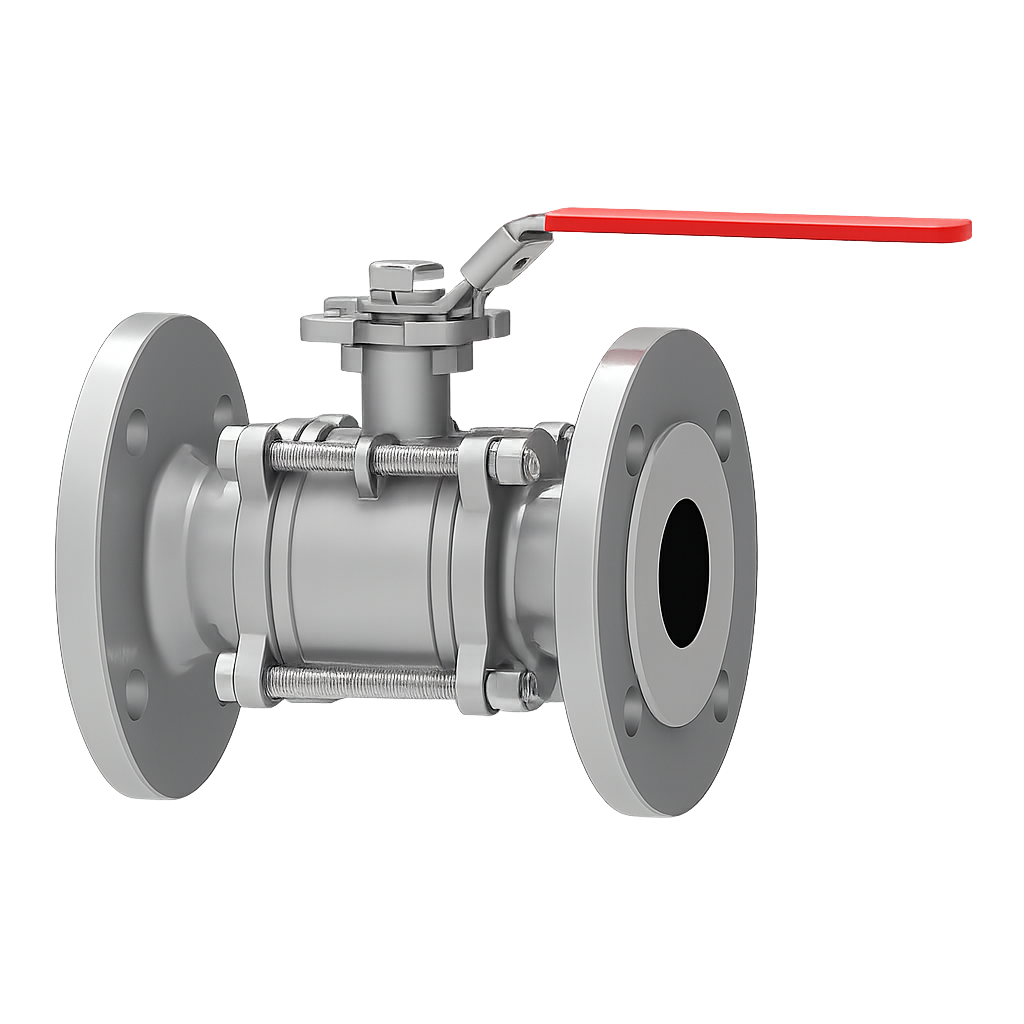

Nexxen Valve high quality 2 PCS Flange Floating Ball Valve With a compact two-piece design and flanged connections, you will find that installation is easy when you purchase our valves. Connecting the stem directly to the ball makes it easier to control the release/stop of the fluid. Because the ball is not fixed to the valve body, it is called a floating ball valve. Instead, the ball is supported by the upstream and downstream seats and can flow freely within the valve body to a certain extent.
2 PCS Flange Floating Ball Valve When the ball is in the closed position, the fluid pressure forces the ball against the downstream seat, forming a tight seal to prevent leakage. You need to understand this principle to make better use of this product. Floating ball valves usually consist of a one-piece or two-piece valve body with a ball with holes inside the valve body. However, when the fluid pressure is low or the valve seat is worn, the valve cannot seal effectively. This valve usually has flanged inlets and outlets to facilitate installation into the pipeline system. We use precision forged two-piece carbon steel/stainless steel/alloy steel valve bodies with both floating balls and PTFE seats for low torque operation and bidirectional flow, suitable for industrial fluid systems.
Product Description
Nexxen Valve 3 PCS Flange Floating Ball Valve adopts a three-piece flange design, which was designed by our team after many studies. It is easy to maintain and has a firm seal, suitable for quick installation and removal in pipeline systems. The operating principle of the floating ball mechanism is also simple. It dynamically adheres to the valve seat under fluid pressure, with a reliable closure that allows you to rest assured, thereby providing a tight seal and switching control in various industrial applications. Designed for low torque operation and bidirectional flow, the valve is durable and versatile, suitable for various fluid handling in the chemical, oil and gas industries.
Product Description

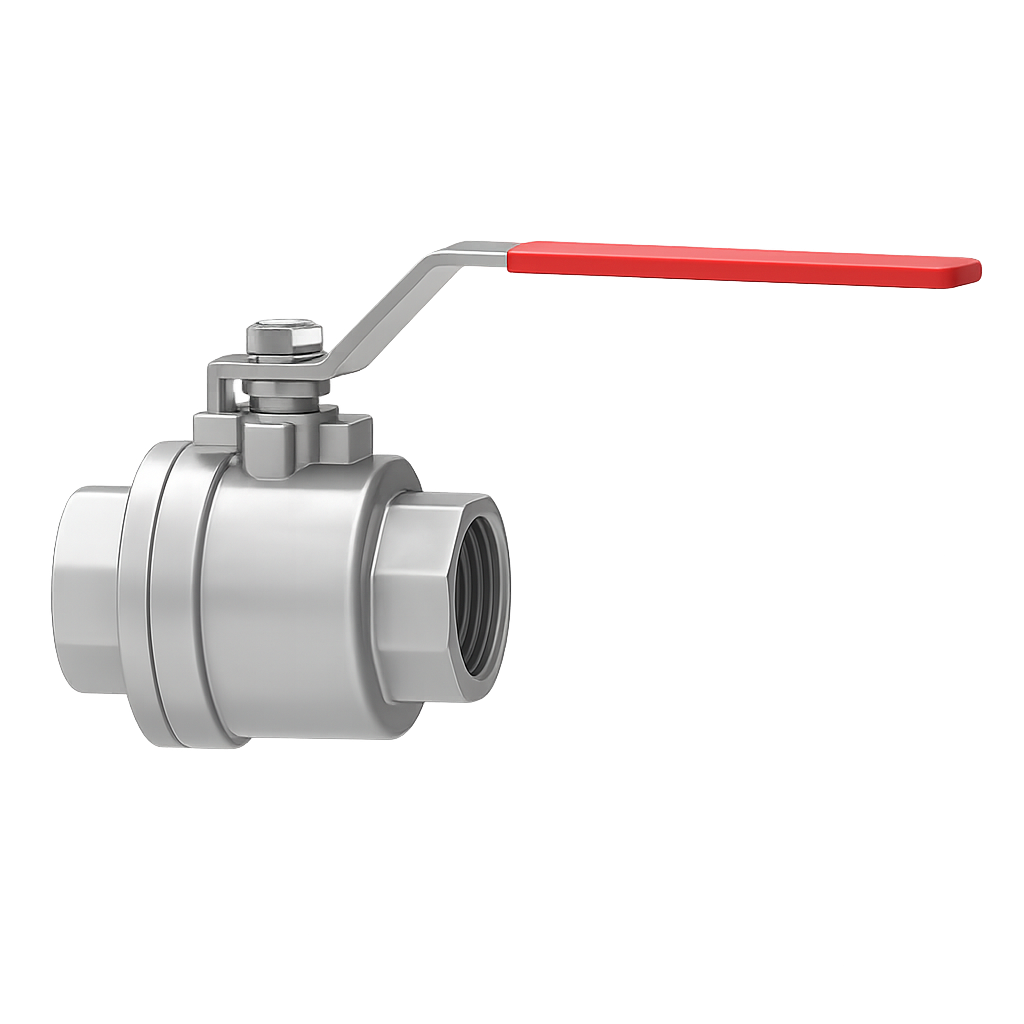

2 piece threaded ball valve is mainly used in pipelines to cut off, distribute and change the flow direction of the medium. It is a new type of valve that is widely used and has obvious advantages:
1. The fluid resistance is small, and its resistance coefficient is equal to that of the pipe section of the same length.
2. Simple structure, small size and light weight.
3. Tight and reliable, the sealing surface material widely uses plastic, with good sealing performance, and has been widely used in vacuum systems.
4. Easy to operate, quick opening and closing, only need to rotate 90° from full open to full closed, which is convenient for long-distance control.
5. Easy to maintain, the sealing ring is generally movable, and it is convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when passing.
7. Wide range of applications, diameters range from a few millimeters to several meters, and can be used from high vacuum to high pressure. When the ball rotates 90 degrees, the inlet and outlet should all present spherical surfaces, thereby cutting off the flow.
Product Description

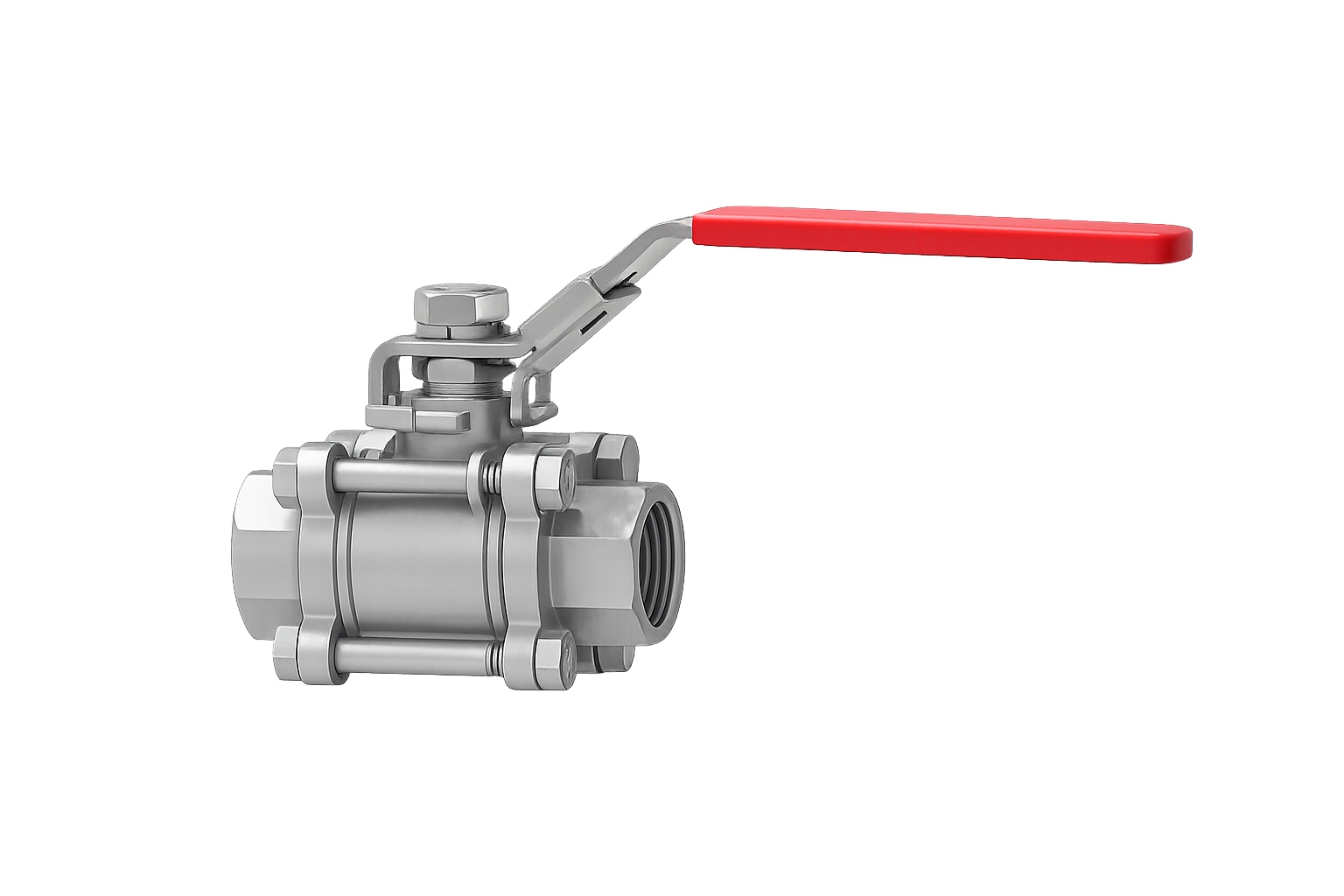

3 piece threaded ball valve, a valve mainly used to cut off, distribute and change the flow direction of the medium in the pipeline, is fully quality controlled during our production and manufacturing process to ensure the following performance:
1. Small fluid resistance, the resistance coefficient is equal to the pipe section of the same length.
2. Simple structure, small size and light weight.
3. The sealing surface material widely uses plastic and has good sealing performance.
4. Quick opening and closing, convenient for remote control.
5. Easy maintenance, the disassembly and replacement of the sealing ring are relatively convenient.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, which will not cause erosion of the valve sealing surface.
7. Wide range of applications, diameters range from a few millimeters to several meters, and can be used from high vacuum to high pressure.
8. When the ball rotates 90 degrees, the inlet and outlet are all spherical, thereby cutting off the flow.
Our Solutions
Industrial Valve Products
Globe Valves
DN15–DN100 | PN16 / PN25
Materials: Cast Iron · Ductile Iron · Steel
Precise flow control for industrial applications requiring reliability and durability.
Ball Valves
DN15–DN100 | PN16 / PN25
Materials: Cast Iron · Ductile Iron · Steel
Tight shut-off performance with low pressure loss for on/off applications.
Gate & Check Valves
DN15–DN100 | PN16 / PN25
Materials: Cast Iron · Ductile Iron · Steel
Full-bore isolation and backflow prevention for safe and stable system operation.
Butterfly Valves
DN40–DN300 | PN10 / PN16
Materials: Ductile Iron · Steel
Compact and efficient flow control solution for large-diameter pipelines.
